TAU TECH tabletop metal laser marker

✅ TAU TECH: YAG Laser System for Deep Marking

The TAU TECH is a desktop computerized system designed for deep laser marking. Equipped with a fully protective enclosure with a shielded viewing window, it provides a safe working environment and optimal visibility during operations.

The system can be equipped with variable power laser sources from 20 to 100W, offering great flexibility in applications and the ability to customize with various accessories.

➡️ Application Sectors:

• molds
• metal parts
• fashion accessories
• customization
• coin minting
• jewelry
• costume jewelry
• silverware

➡️ Technical Features:

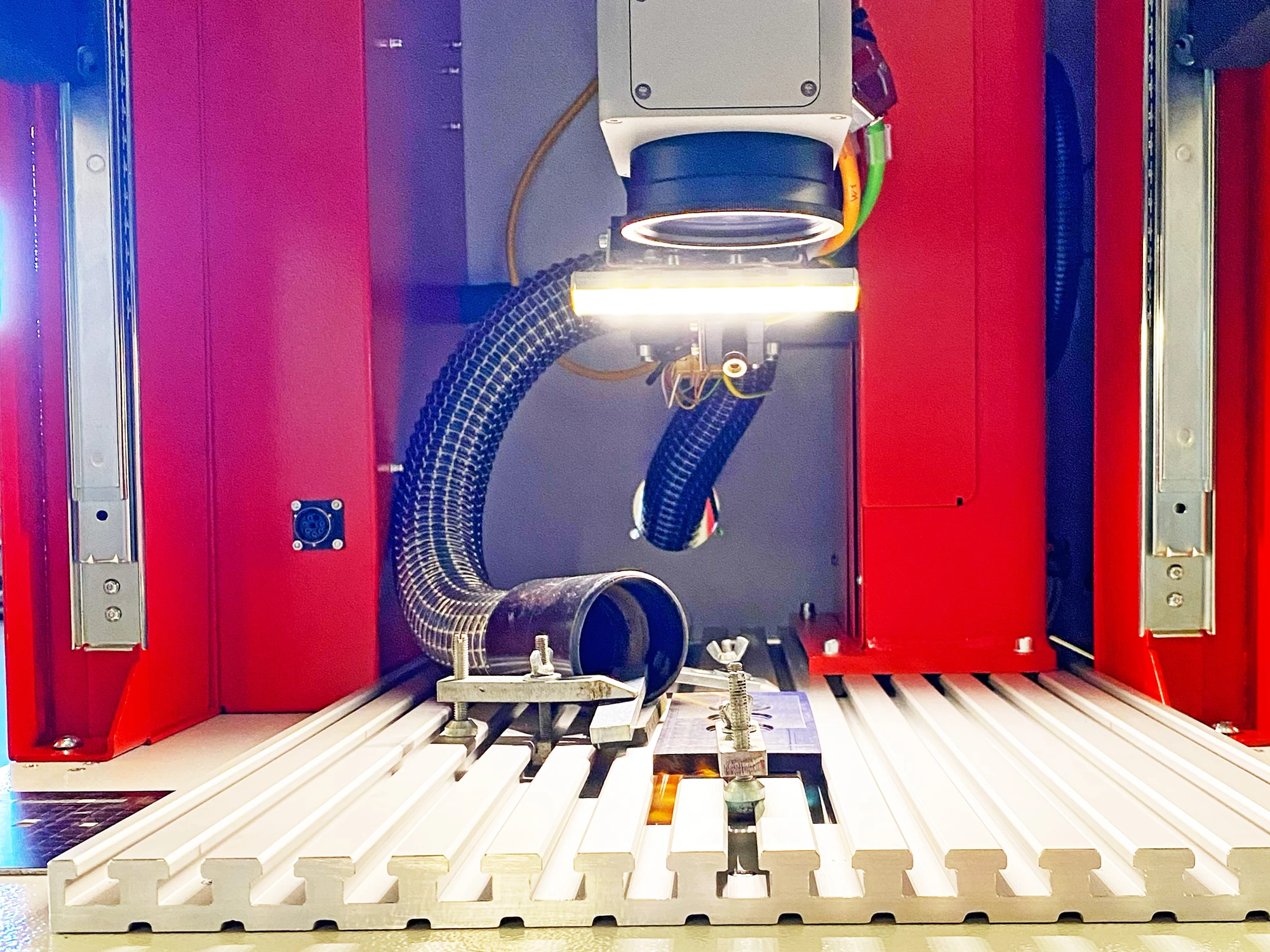

• Structure: electro-welded base with painted sheet metal covers, protective enclosure with manual vertical opening, and large viewing window


• Work Table: aluminum with T-slots for centering systems and clamping of workpieces.
  Workable surface dimensions: 100x100 mm


• Z Axis: equipped with a stepper motor for automatic focus adjustment on the workpiece, with a maximum travel of 200 mm


• Electronic Control: integrated board for managing the scanner head motors, Z-axis, and laser source safety measures


• Laser Source: high modal quality Ytterbium fiber laser MO-PA, 20W average power, variable pulse length from 4 ns to 200 ns


• Deflection Unit: 2-axis XY laser beam deflection system, mirrors driven by high-speed galvo motors (up to 7 m/s) with low drift (30 μrad/K). Mirror entrance pupil of 10 mm, flat field lens with 160 mm focal length, working area 100x100 mm, minimum spot size 30 μm, working distance 185 mm, typical focal depth 0.3 mm


• Exhaust System: suction hood located near the scanner head, connectable to the filtration system

➡️ Management Software:

The TAU TECH comes with intuitive software for the creation, composition, and execution of laser marking jobs. The work tools are seamlessly integrated, offering the operator all the functionalities needed for efficient operation.
